Puffin is our family camper, designed in CAD and built by hand on a Peugeot Boxer L3H2. Its two best ideas, a drop-down bunk and a wet-room bathroom, are becoming self-build kits for the Boxer, Relay and Ducato.

Explore the kits Follow the build
  • Sleeps 4
  • Drives 4
  • 24 V off-grid
  • No gas on board

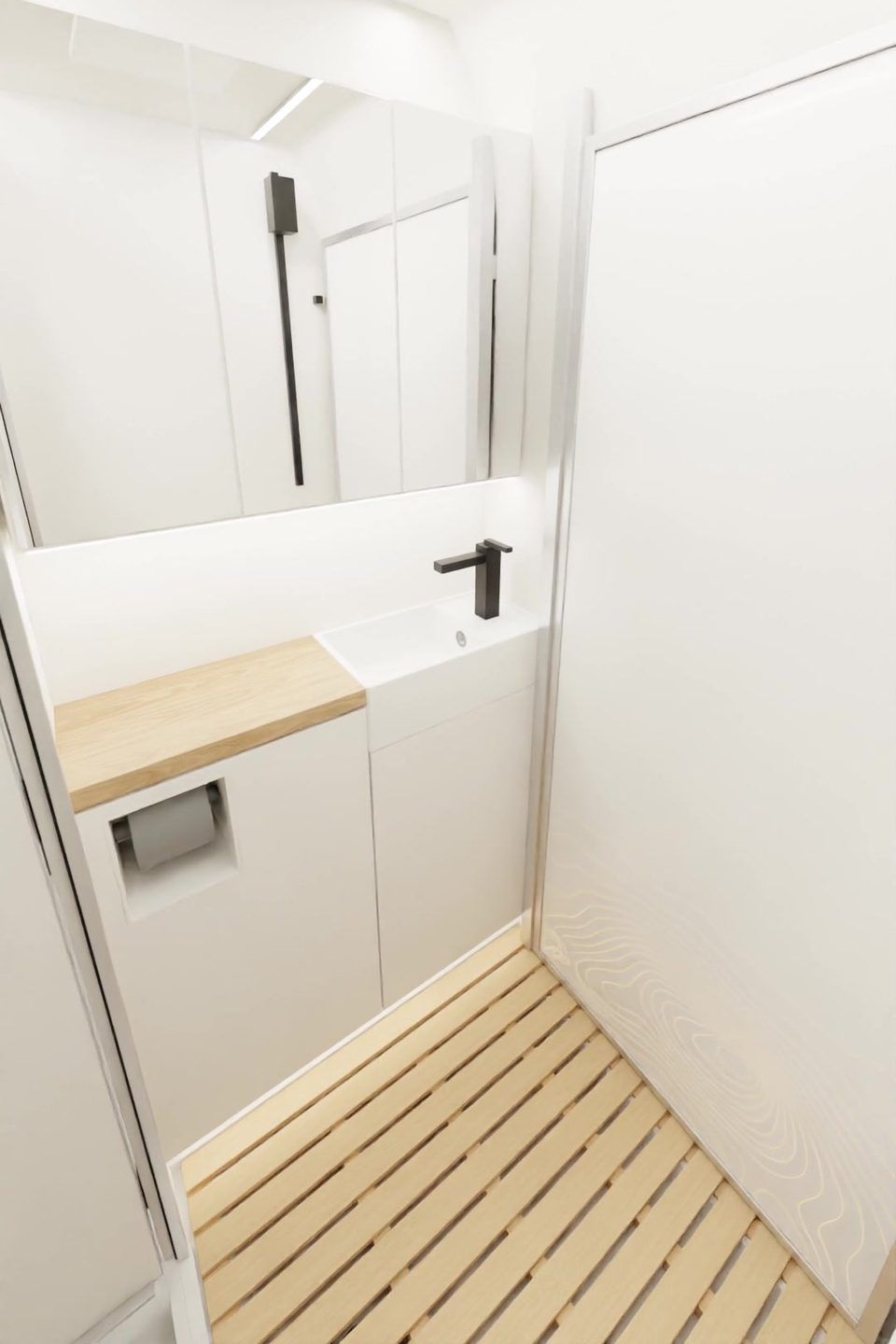

The BA-01 bathroom rendered from the Fusion 360 model: white vanity with oak top, black tap, bamboo duckboard and a contour-lit screen
BA-01 · Rendered from CAD
The kits

Two hard problems, solved in CAD.

Each kit comes as Plans, or as Plans + Parts with everything cut and machined. Either way, you build it.

CAB DINETTE · 2 BELTED SEATS STOWS 160 MM TO THE CEILING AUTO TRAVEL PINS ×3 580 TRAVEL 1900 MM SLEEPING 500 DRAWER 1400 FRAME LINEAR RAILS · 3 CARRIAGES GAS-STRUT ASSIST ×2 SUPPORT WALL CLIP-ON LADDER 1 2 3 4 5 6 5 6 7
DB-01 · Drop-down bunk Side elevation · off-side · concept · mm Night · bed down
DB-01 · Self-build kit

Drop-down bunk

A 1900 mm single bed that lifts flush to the ceiling by day, over a dinette with two belted seats.

  • Sleeping length1900 mm, with leg drawer
  • Stowed depth160 mm
  • Lift2 gas struts, 3 linear-rail carriages
  • Travel locking3 auto pins + separate keeper
  • Design loadOne occupant, 150 kg
PlansPlans + Parts
View the bunk kit

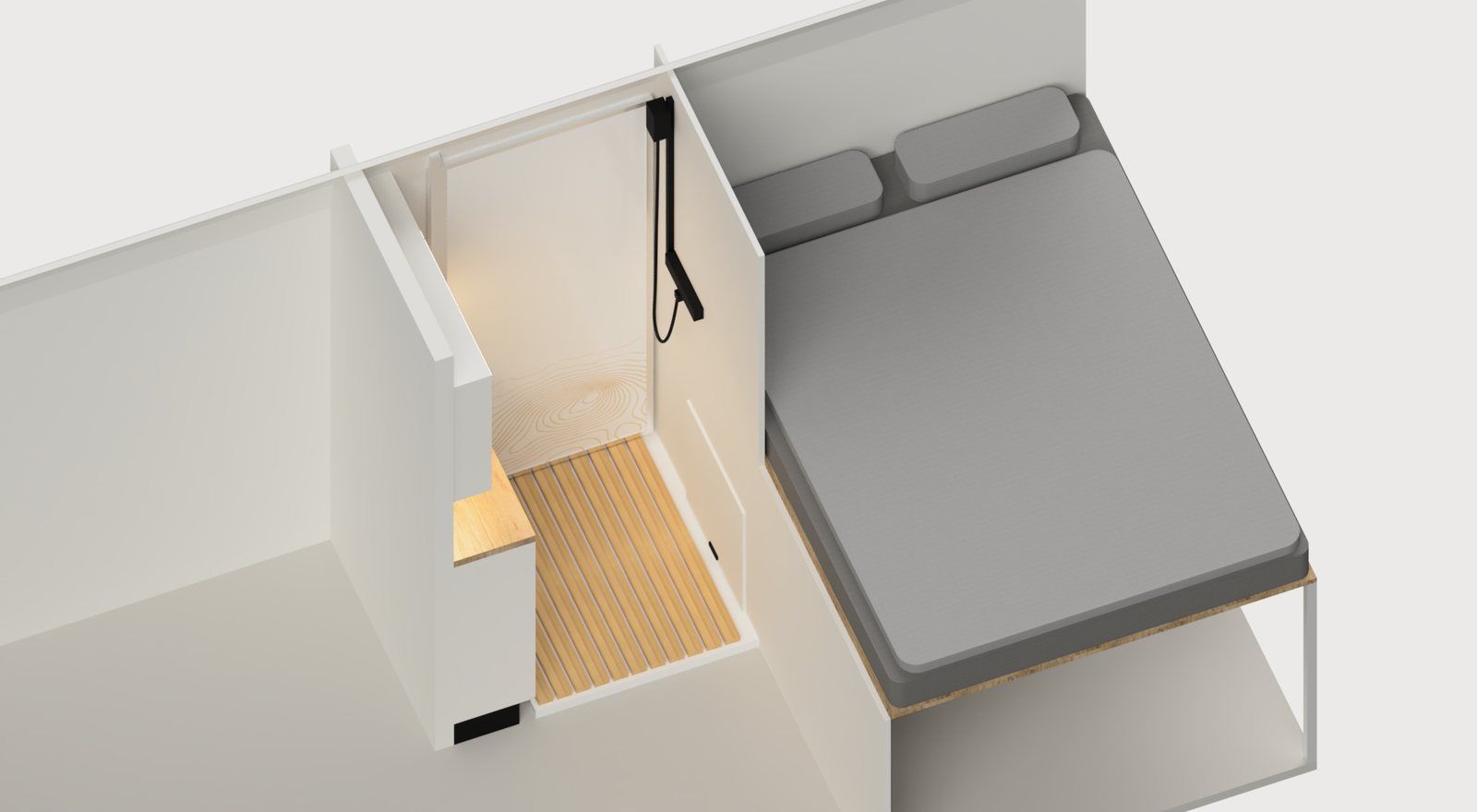

Isometric render of the BA-01 bathroom beside the rear bed: vanity, bamboo duckboard, contour-lit screen and hinged door
BA-01 · Self-build kit

Wet-room bathroom

A real bathroom in 950 × 800 mm: dry vanity in front, full-tray shower behind a swing screen, and a toilet that slides away under the bed.

  • Room950 × 800 mm, off-side
  • Shower780 × 800 mm tray, bamboo duckboard
  • ToiletComposting, on a locking slide
  • Screen685 mm swivel, contour-lit
  • DoorAluminium honeycomb, 550 mm
PlansPlans + Parts
View the bathroom kit
Concept drawings

See how they move.

Simplified from the Fusion 360 models of our own van. Switch modes to see what each part does.

DB-01 · Drop-down bunk

Release the pins and the bed lowers 580 mm on three linear-rail carriages, with two gas struts carrying the weight both ways. Slide the leg drawer out into the cab for a full 1900 mm.

CAB DINETTE · 2 BELTED SEATS STOWS 160 MM TO THE CEILING AUTO TRAVEL PINS ×3 580 TRAVEL 1900 MM SLEEPING 500 DRAWER 1400 FRAME LINEAR RAILS · 3 CARRIAGES GAS-STRUT ASSIST ×2 SUPPORT WALL CLIP-ON LADDER 1 2 3 4 5 6 5 6 7
  • Linear rails, 3 carriages
  • Gas-strut assist ×2
  • Support wall
  • Dinette, 2 belted seats
  • Stows 160 mm to the ceiling
  • Auto travel pins ×3
  • 580 mm travel
  • 1900 mm sleeping: 1400 frame + 500 leg drawer
  • Clip-on ladder
DB-01 · Drop-down bunk Side elevation · off-side · concept · mm Night · bed down
BA-01 · Bathroom

Swing the screen across and the tray becomes the shower. The vanity stays dry behind it, and water runs off a bamboo duckboard.

OFF-SIDE WALL 950 800 ← BUNK + DINETTE WHEEL ARCH REAR BED ABOVE · GARAGE BELOW TOILET STOWED 508 ON A LOCKING SLIDE SHOWER WHOLE TRAY IS WET ZONE VANITY · BASIN + OAK TOP DOOR 550 · OPENS TO AISLE TRAY 780 × 800 · 14-SLAT BAMBOO DUCKBOARD SCREEN 685 ON A 90° SWIVEL · CONTOUR-LIT 1 2 3 4 5 6 7 8 8
  • Vanity: basin and oak top
  • Door 550, opens to the aisle
  • Tray 780 × 800, 14-slat bamboo duckboard
  • Screen 685 on a 90° swivel, contour-lit
  • Wheel arch
  • Rear bed above, garage below
  • Bunk and dinette, in front
  • Toilet, stowed under the rear bed
  • Toilet out: 508 on a locking slide
  • Room 950 × 800. All dimensions in mm.
BA-01 · Bathroom Plan · off-side · concept · mm Shower · screen across

One room, four moods.

BA-01 rendered from the CAD model under its own LED scenes: ceiling strips, mirror light and a glow under the vanity.

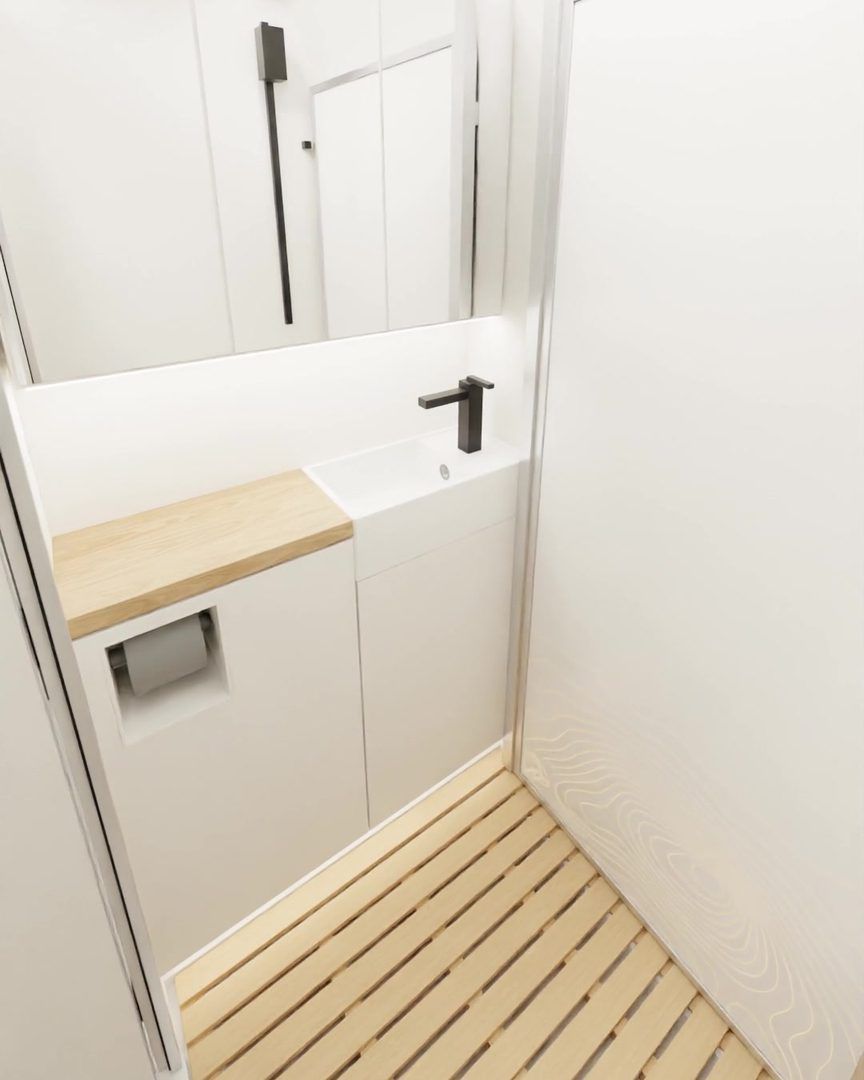

Bathroom render, daylight scene
Daylight

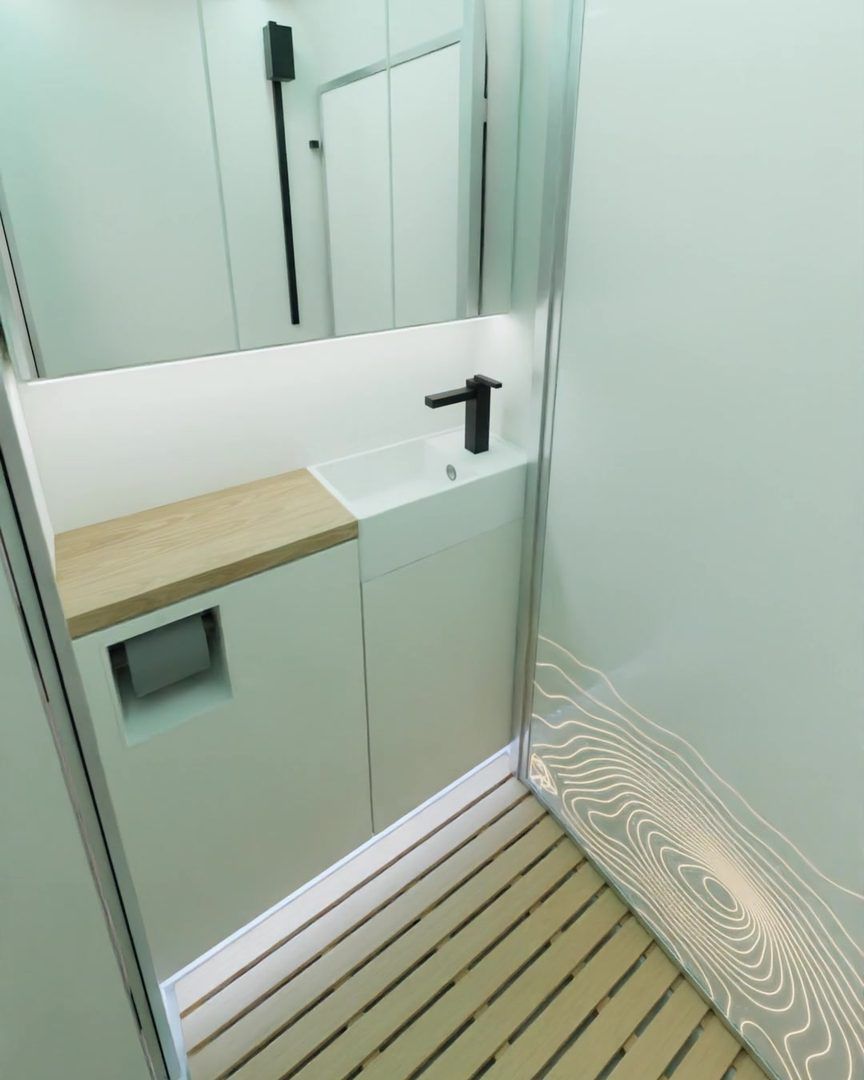

Bathroom render, spa scene in cool teal light
Spa

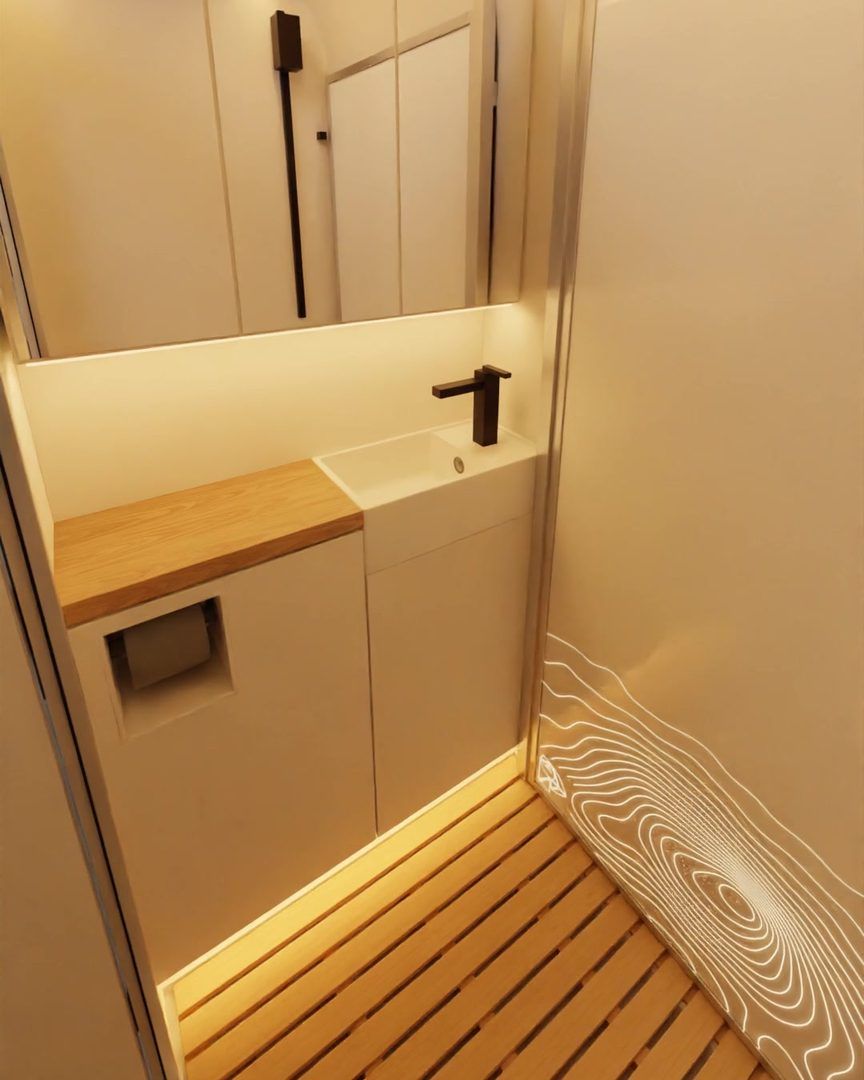

Bathroom render, warm scene
Warm

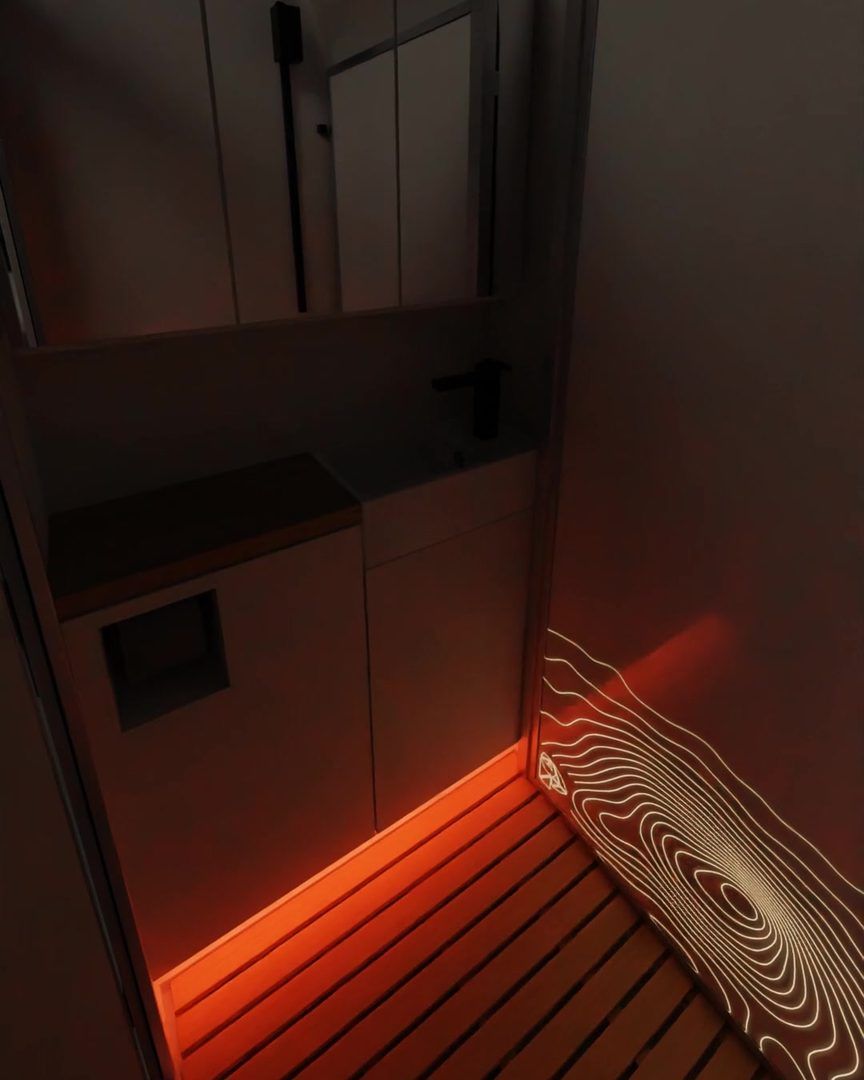

Bathroom render, evening scene with red light from under the vanity across the duckboard
Evening
Follow the build

@puffin_camper

Every bracket, render and rethink, posted as it happens. The kits are proven on our own van before anyone else builds one.

Open Instagram

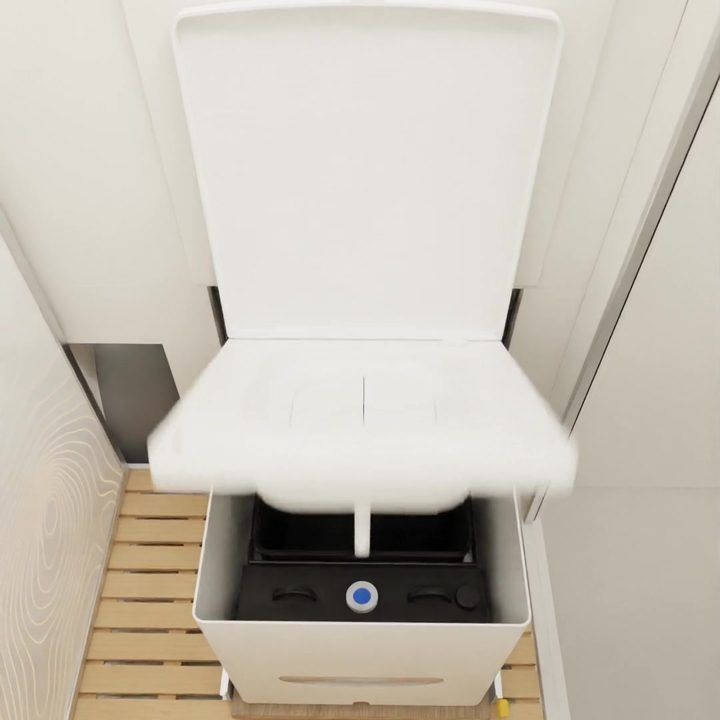

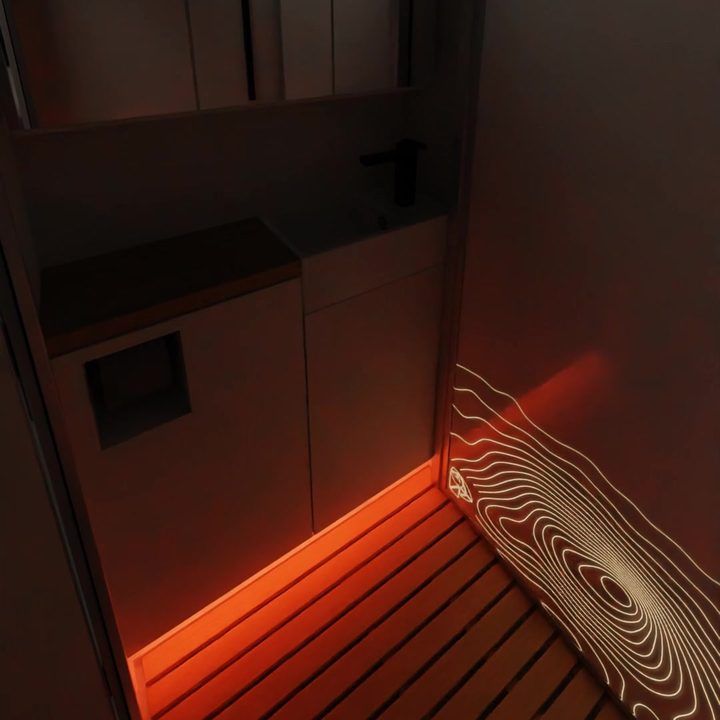

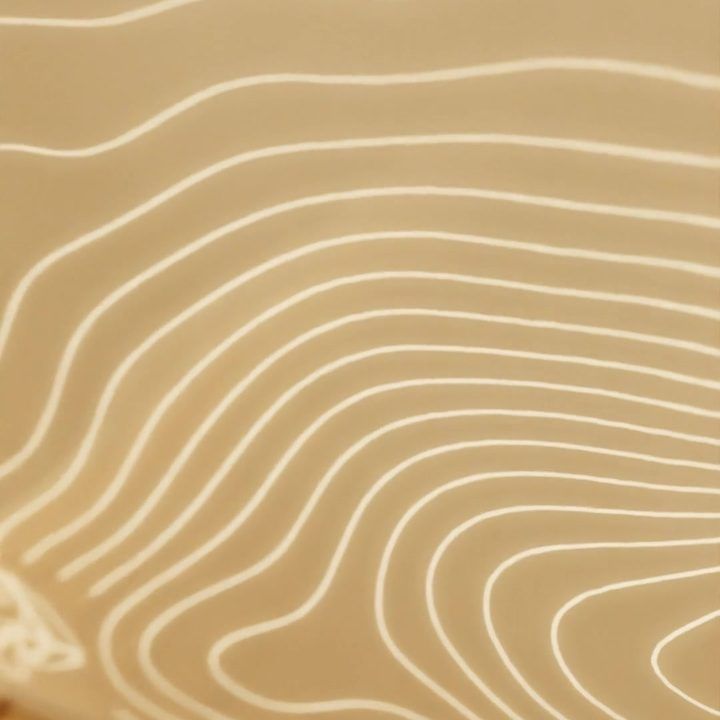

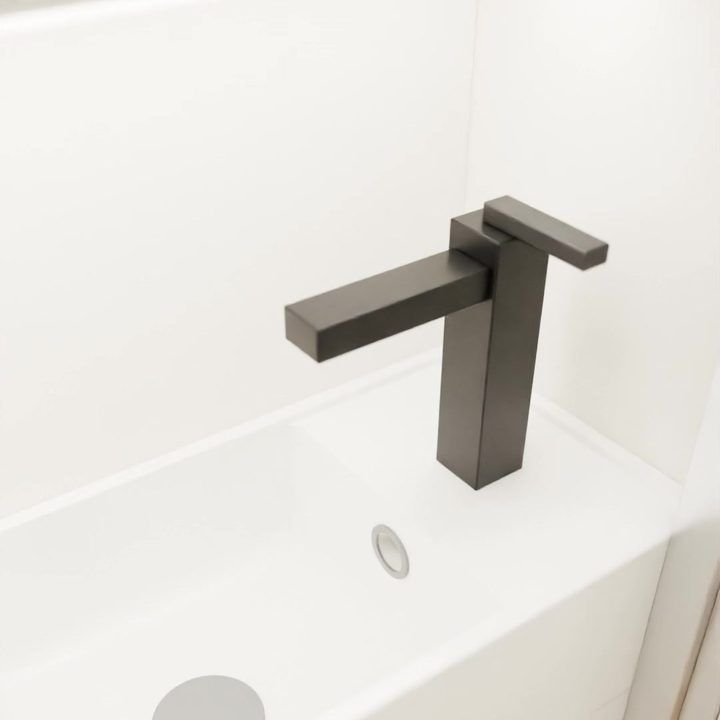

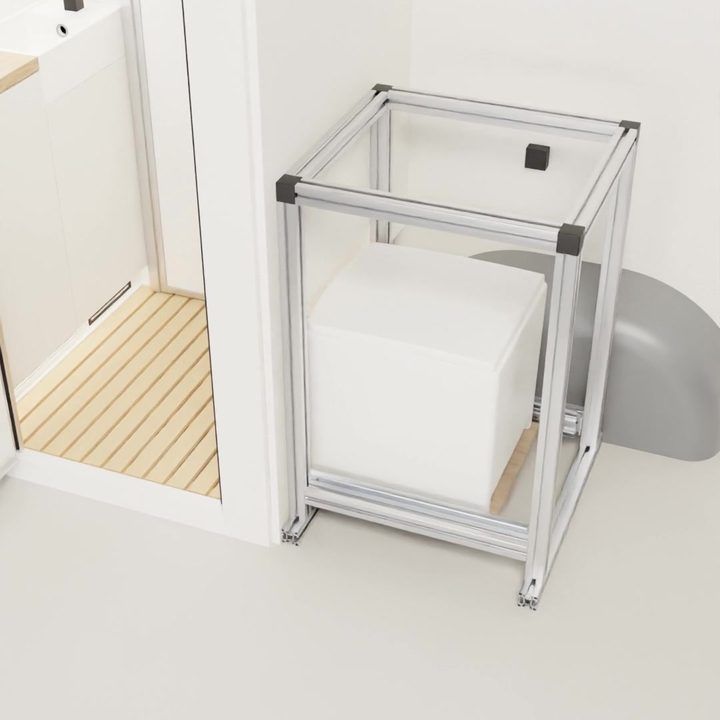

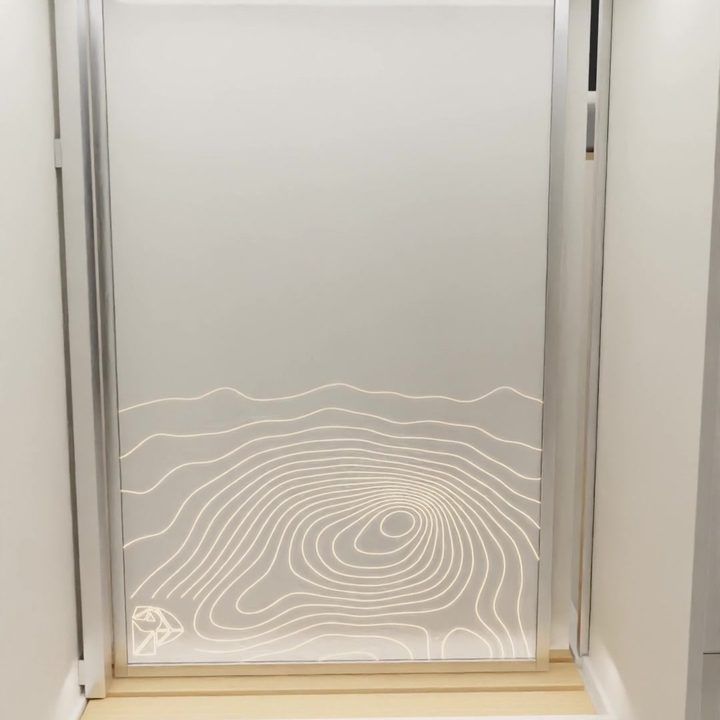

Instagram: contour lines glowing on the shower screen Instagram: the composting toilet slid out with its lid up Instagram: the aluminium toilet slide frame Instagram reel: the bathroom lighting scenes Instagram: square black mixer over the ceramic basin Instagram: the contour-lit shower screen through the open bathroom door
Compatibility

Will it fit my van?

Both kits are drawn around the Sevel L3H2 shell: 4035 mm wheelbase, 3705 × 1870 mm load floor, 1932 mm inside height.

Van Years Size Bunk DB-01 Bathroom BA-01
Peugeot Boxer 2014 on · L3H2 2014 on L3H2 Fits Fits
Citroën Relay 2014 on · L3H2 2014 on L3H2 Fits Fits
Fiat Ducato 2014 on · L3H2 2014 on L3H2 (35 / 40 L3H2, "LWB High Roof") Fits Fits
Same body shell · fit to be confirmed
Boxer, Relay, Ducato 2014 on · L4H2 2014 on L4H2 To confirm To confirm
Boxer, Relay, Ducato 2006–2014 · L3H2 2006–2014 L3H2 To confirm To confirm
Vauxhall Movano 2021 on · L3H2, L4H2 2021 on L3H2, L4H2 To confirm To confirm
Toyota Proace Max 2024 on · L3H2 2024 on L3H2 To confirm To confirm
Electric versions (E-Boxer, ë-Relay, E-Ducato, Movano Electric) 2020 on · L3H2 2020 on L3H2 To confirm Not supported · battery under the floor

Not supported: Vauxhall Movano 2010–2021 (Renault Master based), the bathroom on L2 and shorter, the bunk on an H3 high roof, crew vans, vans with the optional off-side sliding door and window vans with off-side glazing.

Not sure? Tell us your van

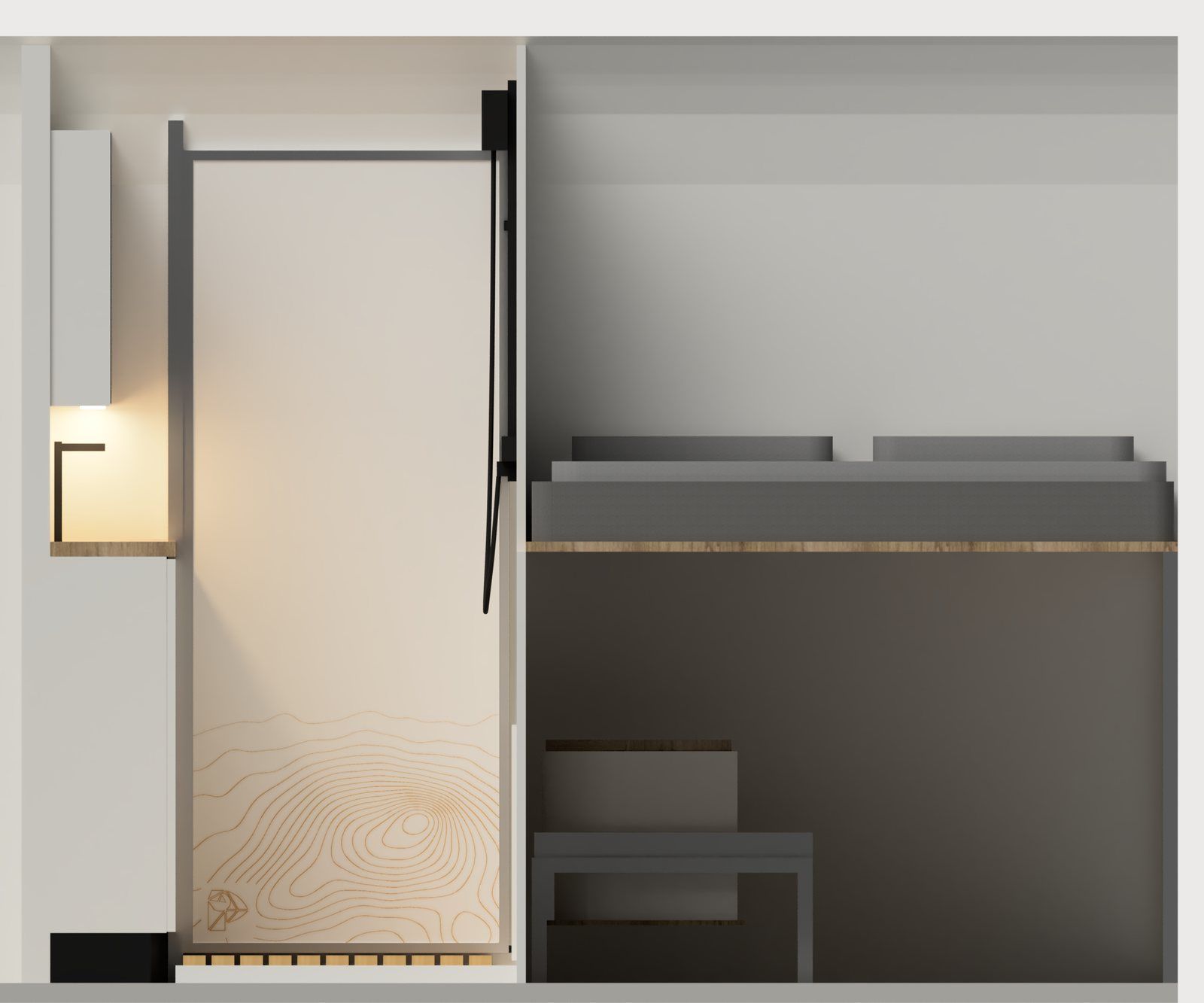

Front elevation render of the bathroom and rear bed
